YEALINK MVC S90 MICROSOFT TEAMS ROOMS SYSTEM FOR PRO-AV ROOM

YealinkSKU: MVCS90-C5-004
No reviews

Price:
Our price$9,999.00

DESCRIPTION

Elevate large conference room collaboration with the Yealink MVC S90, a premium Microsoft Teams Rooms system tailored for Pro-AV and extra-large meeting spaces. With intelligent multi-camera support, high-performance processing, and seamless control integration, the MVC S90 is built to transform boardrooms and multipurpose spaces into intelligent, hybrid-ready environments.

KEY BENEFITS:

Multi-Camera IntelliFocus
Dual UVC86 4K PTZ cameras with 12x optical zoom and AI-powered tracking
Speaker tracking, presenter tracking, and auto-framing for dynamic visibility
Supports up to 9 synchronized camera inputs via AVHub

AI-Enhanced Processing
Powered by Intel Core Ultra 5 processor with 34 TOPS of AI performance
Supports HDMI CEC, EDID, and up to three-screen output for immersive layouts
Delivers seamless video and content transitions for hybrid collaboration

Crystal-Clear Audio
Compatible with Yealink microphones including VCM35, VCM38, and VCM36-W
Integrates easily with 3rd-party audio systems such as Biamp, Shure, and Yamaha
Optional MSpeaker II enhances voice pickup and media playback

Streamlined Meeting Control
MTouch Plus 11.6" touch panel with anti-fingerprint glass and 1080p resolution
Join, manage, and control Teams meetings, camera layouts, and whiteboarding
Supports multiple touch panels across the same deployment

Flexible Content Sharing
Includes HDMI and USB-C wired inputs for laptops and devices
Supports Yealink WPP30 wireless presentation pod (sold separately)
BYOD Extender enables easy plug-and-play device integration

Environmental Awareness
Yealink RoomSensor detects occupancy, light, temperature, and humidity
Automatically wakes the system and adjusts conditions for optimal use
Room data visible directly from the touch panel interface

Efficient Installation & Management
Single CAT5e cable connects MCore Pro, AVHub, and MTouch for simplified cabling
Centralized device management through Yealink Management Cloud Service
Scalable system ready for expanding camera and audio configurations

SUITED FOR

  • Boardrooms, auditoriums, and large hybrid spaces

  • Executive conference rooms with multi-speaker engagement

  • Organizations needing Teams-certified, scalable AV setups

SYSTEM COMPONENTS
Cameras:
Dual UVC86 4K PTZ with 12x optical + 1.7x digital zoom
AI-driven auto framing, speaker/presenter tracking, gesture control

Compute Unit:
MCore Pro with Intel Core Ultra 5, 16GB RAM, 256GB SSD
Wi-Fi 6, Bluetooth 5.2, triple HDMI output with CEC/EDID support

Touch Panel:
MTouch Plus – 11.6" 1080p touchscreen with narrow bezel
USB-C, HDMI input, adjustable stand or wall-mount option

Hub & Sensor:
AVHub – central video and audio routing for multi-camera support
RoomSensor – BLE 5.2 enabled, supports environmental data tracking

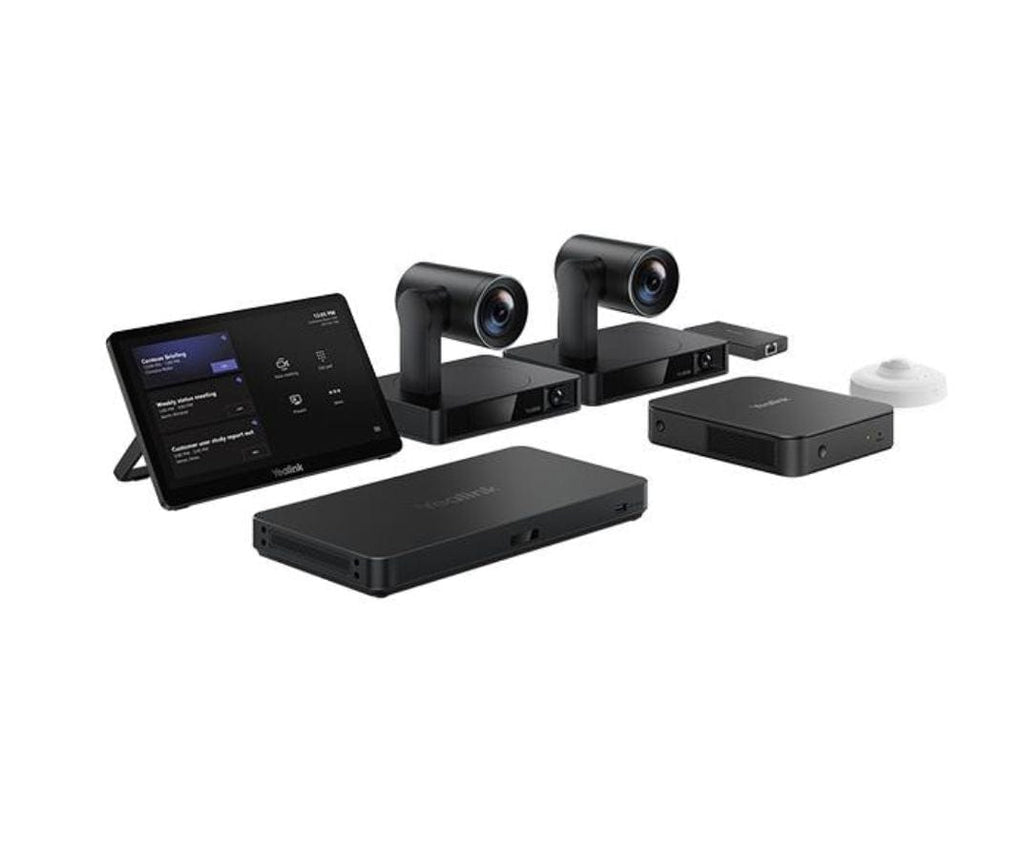

PACKAGE CONTENT:
- MCore 4
- MTouch Plus
- RoomSensor
- UVC86*2
- AVHub
- BYOD-Extender

PRELOAD:
- Windows 11 IoT Enterprise X64
- Windows 11 IoT Enterprise License
- Microsoft Teams Rooms App
- Yealink RoomConnect

MCore 4, Gen-4 Mini-PC
- Processor: Intel Ultra5 125H
- Memory: 16GB(2*8GB) DDR5
- Storage: 256GB SSD
- BIOS feature:
- 3x HDMI video output
- CEC
- EDID
- TPM2.0
- Kernel DMA
Interfaces:
- 1 x HDMI-Out 2.1 port
- 2 x HDMI-Out 2.0 port
- 1 x HDMI-In port
- 4 x USB3.0 Type-A Port
- 1 x MTouch Port (RJ-45)
- 1 x LAN port for AV network
- 1 x 10/100/1000 Gigabit Ethernet Port
- 1 x Power Supply Port
- 1 x 3.5mm headphone Port
- 1 x reset port
- 1 x Security Slot
- WiFi: IEEE 802.11 a/b/g/n/ac/ax
- Bluetooth: BT 5.2

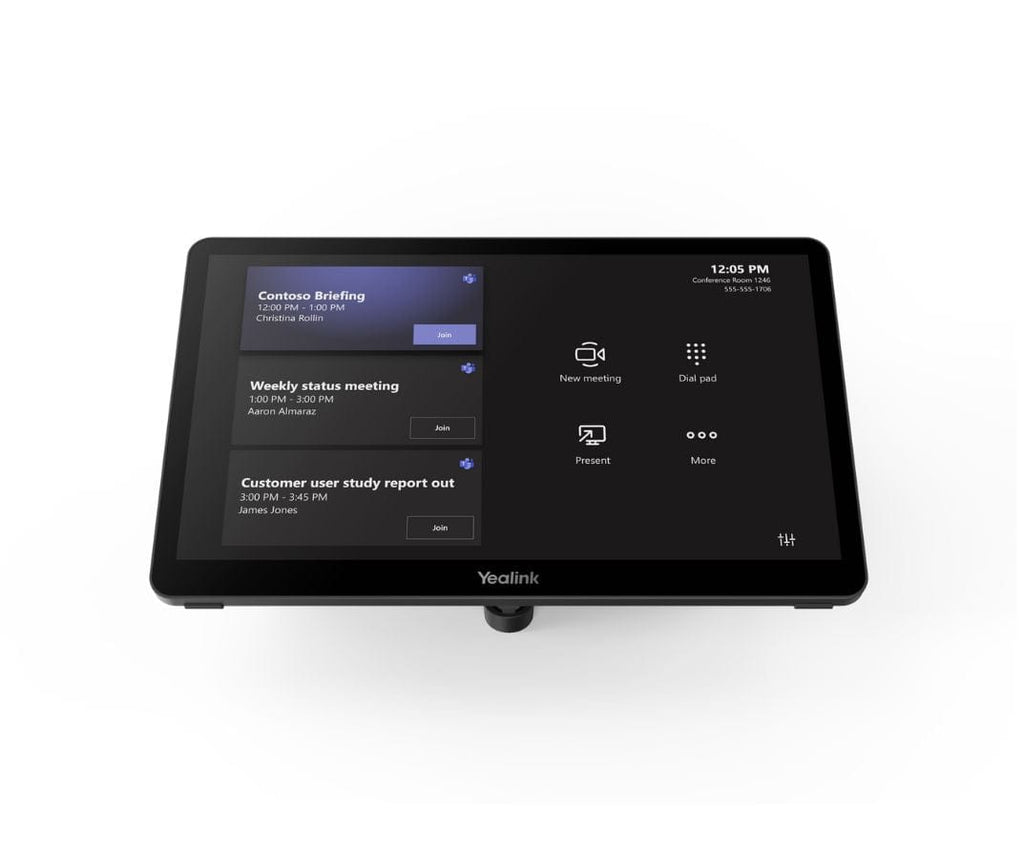

MTOUCH PLUS:
Physical Features:
- 11.6-inch narrow bezel IPS display
- Angle between screen and desktop (30° ~ 70°)
- Adjustable angle of support frame (50° ~ 180°)
Function Features:
- 1920 x 1080 video resolution
- Support wired and wireless (with WPP30) content sharing
- Support external PD power supply to power the sharing device
- Support HDMI/USB-C video input
- Support desktop placement, desktop fixed, wall-mounted deployment
