CAMERA
- 4K 3X optical zoom lens with 15X zoom
- Field of view (D/H/V): 92°/84°/53°
- Sony 4K True WDR sensor: ultra-crystal-clear image in any lighting
- Frame rate (16:9): 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 480 at 48Hz, 640 x 360 at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360 at 60, 30, 15fps
- Adjustable audio fence: Block outside noise; freely define your meeting area
- True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
- SmartFrame & SmartSpeaker: automatic tracking and field of view adjustment to fit all participants and focus on the speaker
- Presentation tracking: Tracking speaker with both preset area and participant tracking
- Smart Gallery* function for great visibility
- Gesture Control for intuitive camera control
- Mirror, Flip, AE, white balance: Auto, manual override via PTZApp 2
- Minimum focus distance: 80 cm
- People counting API: Enterprises and third-party software providers can obtain people-counting data and meeting server for better understanding of meeting space usage
MOTORIZED PAN AND TILT
- Pan: total horizontal viewing area 180°
- Tilt: total vertical viewing area 105°
- 10 camera presets (via remote control and IP web page)
AUDIO
- 10-element beamforming microphone array
- 8 meters (27 ft) pickup range
- Stereo speaker with output power 12W (6W x 2 pcs)
- Volume up to 96 dB SPL at 1 m
- Echo cancellation
- Noise suppression
HDMI
- USB Display Adapter: built-in USB 3.1 (Gen 1) to HDMI adapter

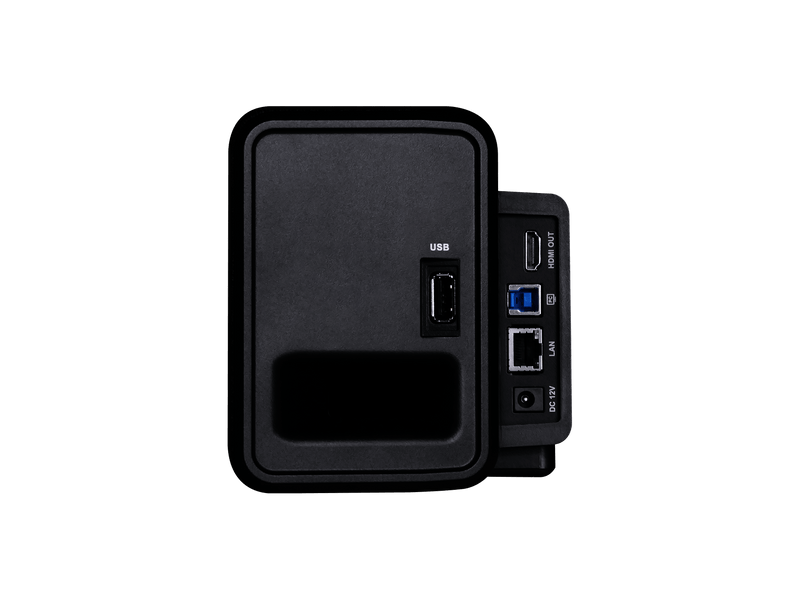

CONNECTIVITY
- 12V/5A power adaptor
- Mini DIN 6 for RS-232 connection
- USB 3.1 Type-C port, backward compatible with USB 2.0
- HDMI out connection (USB Display Adapter)
- Phone in (3.5 mm audio Jack)/Speaker out for HA system*
- Two RJ45 ports (one for Ethernet, one for audio expansion speakerphone/microphone)
- USB 2.0 Type-A²: One for Wireless connection**; one for IFP USB Touch back
VIDEO FORMAT
- YUY, YUY2, MJPEG
- Network video compression formats: H.264, H.265
USB
- USB 3.1 Gen 1, backward compatible with USB 2.0
- UVC 1.1 (USB Video); UAC 1.0 (USB Audio); UVC 1.1
CONTROL
- IR remote control
- WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
- VISC/pelco P/pelco D via RS-232; Visca over IP
- UVC/UVA plug-and-play
- PTZApp 2
MOUNT AND SECURITY
- Camera wall-mount bracket included
- Kensington security lock
SOFTWARE SYSTEM REQUIREMENTS:
- Windows 7/10/11
- Mac OS X 14.4 or later
- ChromeOS 3 version 94.0.4666.114 or later
HARDWARE SYSTEM REQUIREMENTS:
- 3.4 GHz Intel® Core™ i5-4460 processor
- 4 GB RAM or more
- USB 3.1 port, backward compatible with USB 2.0
POWER SUPPLY
- AC 100V-240V, 50/60 Hz
- Consumption: 12V/5A
FREE APPLICATIONS FOR MEETING COLLABORATION:
EZMANAGER 2: CAMERA CENTRAL MANAGEMENT SOFTWARE
- Remotely manage group FW/SW updates, camera control, and settings
PTZAPP 2: CAMERA SETTINGS SOFTWARE
- View live video, people counting number, meeting interval information
- Enable Skype for Business far-end control
- Upgrade firmware automatically or manually
- Control the camera
- Set parameters and adjust the camera image
- Diagnose operating status
- Smart gallery/Virtual USB streaming/ Preset Link
EZLIVE: BROADCASTING SOFTWARE
- Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording
ENVIROMENTAL DATA
- Operation temperature: 0° ~ 40°C
- Operation humidity: 20% ~ 80%
- Storage temperature: -20° ~ 60°C
- Storage humidity: 20% ~ 80%
PACKAGE CONTENTS
- VB342 Pro unit
- Power cable 10 ft (3 m)
- USB 3.0 Type-B to Type-A Cable 5m
- USB 3.1 Type-A to Type-C adapter
- QR code card
- Wall-mount bracket and screws
- Remote control
- Velcro (x2) (pre-install on the device)
- Wall-mount drill paper
OPTIONAL ACCESSORIES
- Mini DIN 6 to RS-232 adapter
- TV VESA mount for mounting on top of TV and beneath TV
- Foldable TV mount
- 10 m/20 m expansion microphone
- 10 m/20 m expansion speakerphone
- 3 m USB 2.0 extender cable
- Wireless dongle (for connecting with mobile phone or AVer Fone540)
- Audio-out converter (TRS female to TRRS male)
DIMENSIONS
- Package dimensions: 824 x 190 x 238 mm
- Weight: 5.33 kg / 9.3 lbs
- Video Bar: 737.8 x 125.5 x 115.5mm / 3.1 kg
- Remote control: 149.72 x 42.2 x 19.3mm / 50 g
WARRANTY
- Camera: 3 years
- Accessories: 1 year
COMPATIBLE APPLICATIONS
- Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans, Intel® Unify, Fuze, Adobe Connect, CyberLink Live!™ Meeting, Cisco WebEx®/GoToMeeting™, LiveOn, Microsoft® Lync®, TrueConf™, GoToWeb, Vidyo, WebRTC, WebExcast, XSplit
